Forbhreathnú
Sonraíocht

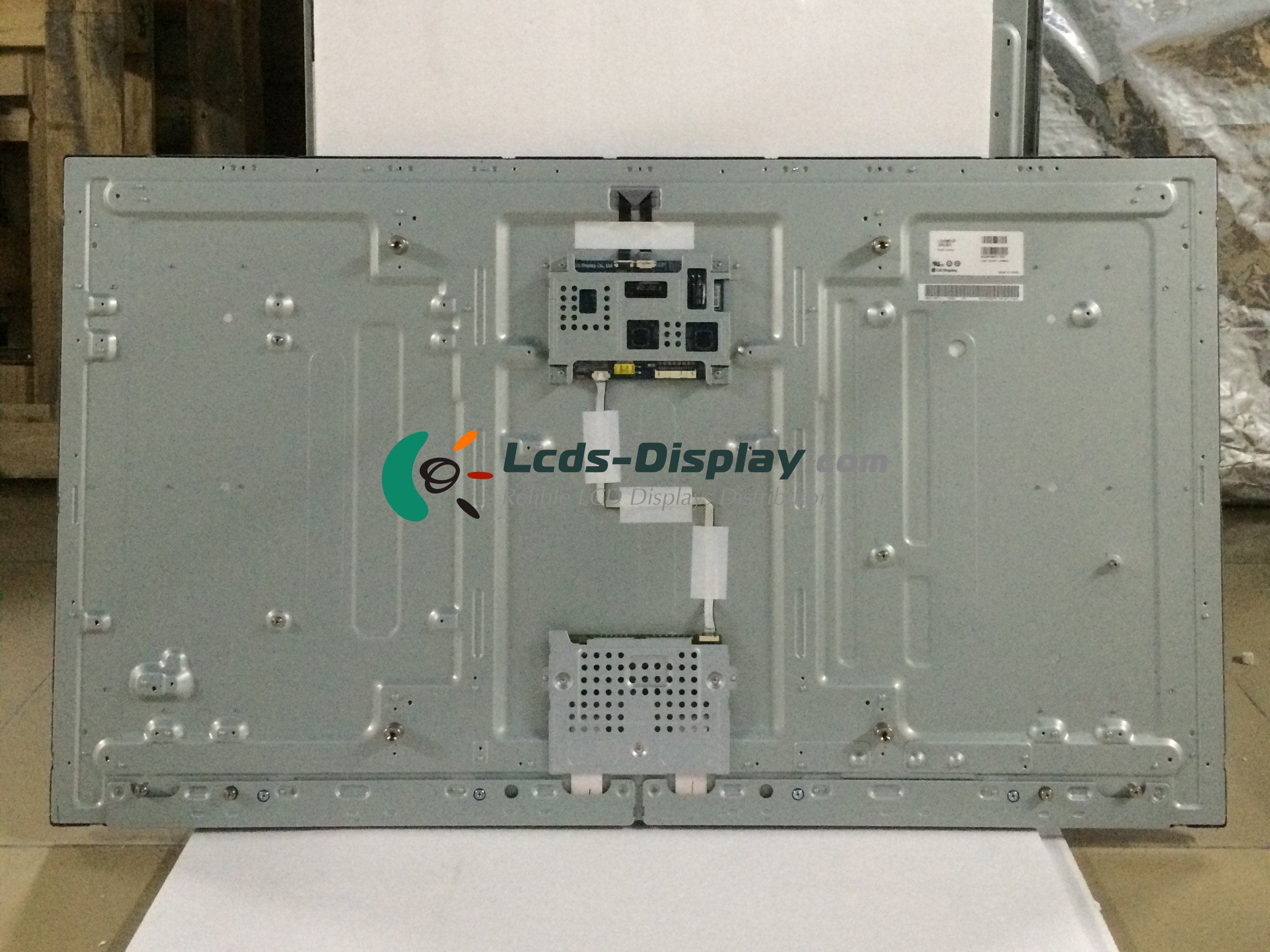

LD420EUP-SEB1
LD420EUP-SEB1 Faisnéis Bunúsach
| Painéal Model | LD420EUP-SEB1 |
|---|---|
| Painéal Brand | LG Display |
| Descrition | a-Si TFT-LCD ,42 inch, 1920×1080 |
| Painéal Cineál | a-Si TFT-LCD |
| LD420EUP-SEB1 Price | Iarratas Price & Am Luaidhe |
| Samhail Alias | LD420EUP (SE)(B1) |
| Teocht Oibriúcháin | 0 ~ 50 °C |
| Teocht Stórála | -20 ~ 60 °C |
| Nótaí | Performance PD, Super narrow bezel (9.9mm) |
LD420EUP-SEB1 Gnéithe meicniúil
| Dot Réiteach | 1920(RGB)×1080 (FHD) |
|---|---|
| Cumraíocht Pixel | RGB Vertical Stripe |
| Dlús Picteilíní | 52 PPI |
| Cóimheas treoaíochta | 16:9 (H:V) |
| Fachtóir Foirm | Flat Rectangle Display |
| Dot Pitch | 0.1615×0.4845 mm (H×V) |
| Pixel Pitch | 0.4845×0.4845 mm (H×V) |
| Meáchan | 9.20/9.70Kgs (Typ./Max.) |
| Dromchla | Antiglare (Haze 10%), Hard coating (3H) |
| Ceantar Gníomhach | 930.24×523.26 mm (H×V) |
| Limistéar Bezel | 938.6×531.5 mm (H×V) |
| Toise Imlíne | 958.4×551.3 mm (H×V) |
| Doimhneacht Imlíne | 16.2/32.4 (Typ./Max.) mm |
| Tírdhreacha nó Portráid | Landscape / Portrait |
| Painéal Teagmhála | Without |
LD420EUP-SEB1 Gnéithe Optúil
| Mód Taispeáin | S-IPS, Normally Black, Transmissive |
|---|---|
| Gile | 450 cd/m² (Typ.) |
| Cóimheas Codarsnachta | 1300 : 1 (Typ.) (Transmissive) |
| Taispeáin Dath | 16.7M/1.06B (8-bit / 8-bit + Dithering) |
| Dath Gamut | 72% NTSC (CIE1931) |
| Am freagartha | 12 (Typ.)(G to G) |
| Uillinn ag Breathnú | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Ag Breathnú ar Threoir | Symmetry |
| Chromaticity dath bán | Wx:0.279; Wy:0.292 |
| Athrú Bán | 1.30 (Max.)(5 points) |
| Solas na gréine inléite | N |
LD420EUP-SEB1 Leictreonaic Gné
| Minicíocht Ingearach | 120Hz |
|---|---|
| Scor ar ais | No |
| Tomhaltas Cumhachta Iomlán | 91.5W (Typ.) |
LD420EUP-SEB1 Córas backlight
| Seasamh Lampa | Edge light type |
|---|---|
| Cineál Lampa | WLED |
| Am Saol Lampa | 60K(Typ.) (Hours) |
| Cineál Comhéadain | Connector |
| Bord Tiomána Lampa | 83.2/89.5W (Typ./Max.) |
LD420EUP-SEB1 comhartha Chomhéadain
| Catagóir Comhartha | LVDS |
|---|---|
| Aicme Comhartha | LVDS (4 ch, 8/10-bit) |
| Voltage Ionchur don Phainéal | 12.0V (Typ.) |
| Ionchur Reatha don Phainéal | 690/900mA (Typ./Max.) |
| Tomhaltas Cumhachta Painéil | 8.3/10.8W (Typ./Max.) |
| Cineál Comhéadain | Connector |
| Comhéadan Comhartha | JAE - FI-RE51S-HF, Pitch:0.5 mm, Pin:51 pins |
