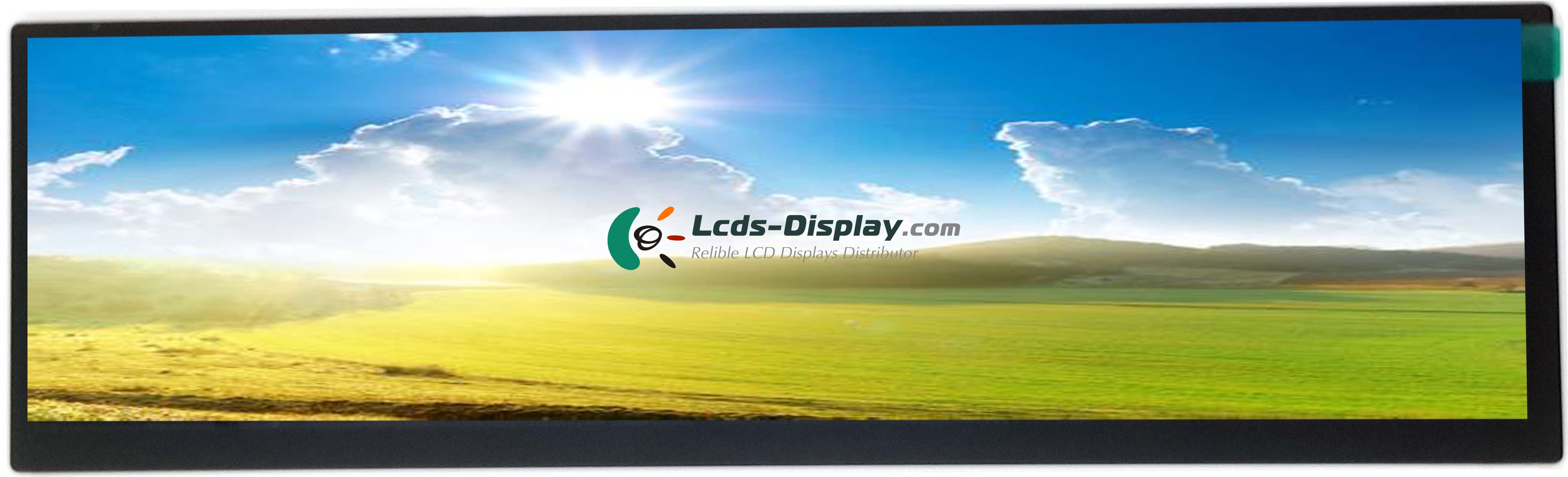

S088WU02
S088WU02 Faisnéis Bunúsach
| Painéal Model | S088WU02 |
|---|---|
| Painéal Brand | CDTECH |
| Descrition | a-Si TFT-LCD ,8.8 inch, 1920×480 |
| Painéal Cineál | a-Si TFT-LCD |
| S088WU02 Price | Iarratas Price & Am Luaidhe |
| Teocht Oibriúcháin | -10 ~ 50 °C |
| Teocht Stórála | -20 ~ 60 °C |
| Nótaí | 2/5 cut of 10.1 inch |
S088WU02 Gnéithe meicniúil
| Dot Réiteach | 1920(RGB)×480 |
|---|---|
| Cumraíocht Pixel | RGB Vertical Stripe |
| Dlús Picteilíní | 224 PPI |
| Cóimheas treoaíochta | >3:1 (H:V) |
| Fachtóir Foirm | Flat Rectangle Display |
| Dot Pitch | 0.037×0.113 mm (H×V) |
| Pixel Pitch | 0.113×0.113 mm (H×V) |
| Dromchla | Hard coating |
| Ceantar Gníomhach | 216.86×54.22 mm (H×V) |
| Limistéar Bezel | 221.2×57.84 mm (H×V) |
| Toise Imlíne | 229.66×67.5 mm (H×V) |
| Doimhneacht Imlíne | 3.5/4.3 (Typ./Max.) mm |
| Tírdhreacha nó Portráid | Landscape type |
| Painéal Teagmhála | Without |
S088WU02 Gnéithe Optúil
| Mód Taispeáin | IPS, Normally Black, Transmissive |
|---|---|
| Gile | 600 cd/m² (Typ.) |
| Cóimheas Codarsnachta | 800 : 1 (Typ.) (Transmissive) |
| Taispeáin Dath | 16.7M (8-bit) |
| Am freagartha | 25 (Typ.)(Tr+Td) |
| Uillinn ag Breathnú | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Ag Breathnú ar Threoir | Symmetry |
| Chromaticity dath bán | Wx:0.313; Wy:0.329 |
| Solas na gréine inléite | N |
S088WU02 Leictreonaic Gné
| Minicíocht Ingearach | 60Hz |
|---|---|
| Scor ar ais | No |
S088WU02 Córas backlight
| Seasamh Lampa | Edge light type |
|---|---|
| Cineál Lampa | WLED |
| Méid an Lampa | 4S9P |
| Cruth Lampa | Array |
| Am Saol Lampa | 30K(Typ.) (Hours) |
| Voltas Lampa | 12.8/13.2V (Typ./Max.) |
| Lampa Reatha | 180/225mA (Typ./Max.) |
| Tomhaltas Cumhachta Lampaí | 2.3/2.97W (Typ./Max.) |
| Cineál Comhéadain | Included in panel signal interface |
| Bord Tiomána Lampa | No |
S088WU02 comhartha Chomhéadain
| Catagóir Comhartha | LVDS |
|---|---|
| Aicme Comhartha | LVDS (1 ch, 8-bit) |
| Voltage Ionchur don Phainéal | 3.3/9.89/21.88/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ionchur Reatha don Phainéal | TBD |
| Cineál Comhéadain | Connector |
